Description

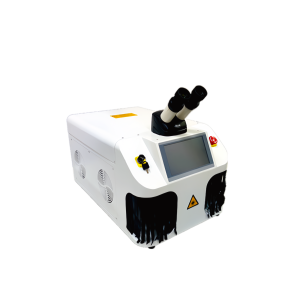

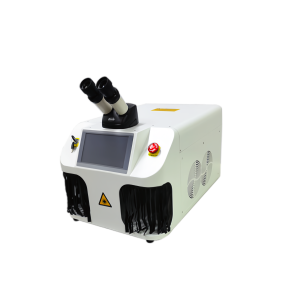

Finder’s jewelry laser spot welders represent the pinnacle of precision welding technology for the jewelry industry. OurFD-Y series machines utilize advanced 1064nm YAG laser technology to deliver flawless welds for precious metals, offering unparalleled control for jewelry repair and manufacturing applications.
Key Product Features:
1. Advanced Laser Technology
– Dual power options: 60W (FD-Y60) and 100W (FD-Y100) configurations
– Adjustable beam diameter (0.15-2.0mm) with ±3.0mm fine-tuning capability
– Precise pulse control (0.1-20ms width, 1-50Hz frequency)
– High pulse energy up to 60J for robust welding performance
2. Superior User Experience
– Integrated microscope + HD CCD camera system for perfect weld positioning
– Multi-language touchscreen interface (English, Turkish, Korean, Arabic)
– Spacious work area accommodates various jewelry sizes
– Compact desktop design optimizes workshop space
3. Reliable Performance
– Built-in water cooling system (2.5L/4L capacity)
– Voltage-stabilized power supply ensures consistent welding quality
– Single lamp design with efficient power consumption (≤2KW)
– Wide operating temperature range (up to 45℃)
Product Parameters
| Laser System | FD-Y60FD | -Y100 |
| Laser Type | 1064nm YAG Laser | |
| Nominal Laser Power | 60W | 100W |
| Laser Beam Diameter | 0.15～2.0mm | |
| Machine Adjustable Beam Diameter | ±3.0mm | |
| Pulse Width | 0.1-20ms | |
| Frequency | 1.0~50.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 40J | 60J |
| Host Power Consumption | ≤2KW | |
| Cooling System | Build in Water Recycling | |
| Water Tank Capacity | 2.5L | 4L |
| Aiming and Positioning | Microscope +CCD Camera System | |
| Operating Mode | Touch Control | |
| Pump Source | Single lamp | |
| Display Touch Screen Mounting Dimensions | 137*190(mm) | |
| Operating Language | English,Turkish,Korean,Arabic | |
| Electrical Connection Values | AC 110V/220V±5%,50HZ/60HZ | |
| Machine Dimension | FD-Y60:L51CM×W29.5CM×H42CM
FD-Y100:L58.5CM×W37.5CM×H44.1CM |
|
| Wooden Package DimensionFD | -Y60:L63CM*W52CM*H54CM
FD-Y100:L71CM*W56CM*H56CM |
|
| Machine Net WeightFD | -Y100:N.W.:40KG; | |
| Machine Gross Weight | FD-Y60:G.W.:42KG; FD-Y100:G.W.:54KG; |
|
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | <90%non-condensing | |
| Application | Welding and repairing all kinds of jewelry and accessories | |
Industry-Leading Advantages:
✔ Universal compatibility with all precious metals (14K-18K gold, 925 silver, etc.)
✔ Cost-effective international shipping for compact units
✔ Customizable language interfaces available
✔ Stable voltage regulation for consistent weld quality
✔ Ideal for jewelry stores, studios, and manufacturing facilities
Applications:
– Precision jewelry repair and restoration
– Gold and silver jewelry manufacturing
– Fine detail welding for delicate components
– Custom jewelry creation and modification
Why Choose Finder Pro Tech?
→ Specialized jewelry welding expertise
→ Compact yet powerful solutions
→ Global language support
→ Reliable after-sales service
Elevate your jewelry craftsmanship with Finder’s precision welding systems – where advanced technology meets jewelry-making artistry.
