Description

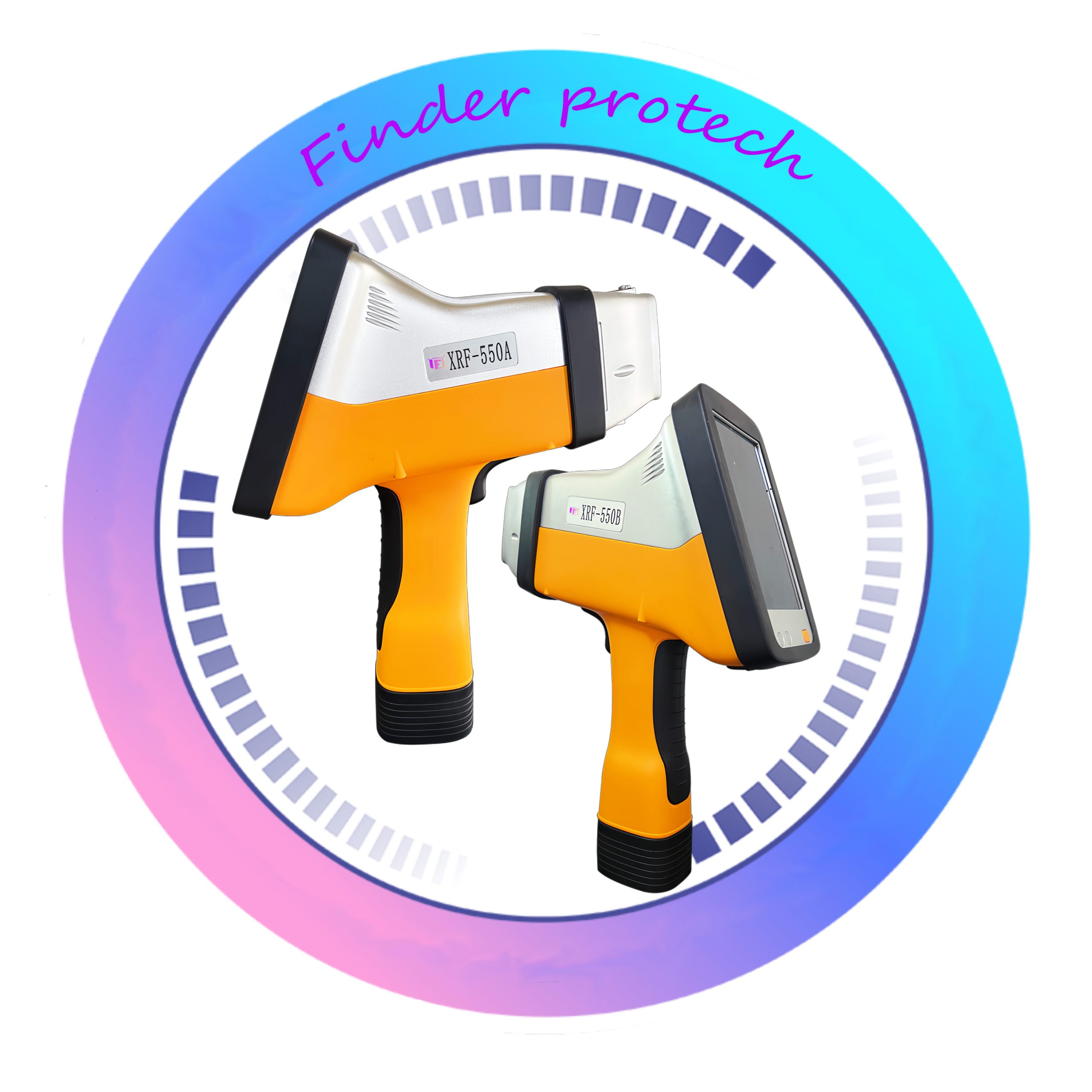

Handheld Alloy Analyzer XRF-550A is a non-destructive testing spectrometer that’s compact, fast, and portable. It delivers results in 10 seconds, weighs only 1.6 kg, and is the perfect partner for gold recycling.
Ideal for analyzing various alloys: high/low-temperature steel, stainless steel, tool steel, chrome-moly steel, nickel alloys, cobalt alloys, Ni/Co heat-resistant alloys, titanium alloys, and precious metals. Its portability, efficiency, and precision make it suitable for on-site applications like quality control, material sorting, alloy identification, and failure analysis.
| Gold tester model | XRF550A |
| Analysis range | 1ppm~ 99.99 % |
| Measurement accuracy | 0.03% |
| Test form | Solid, powder, liquid |
| Light tube voltage | 5KV ~ 50KV |
| High voltage power supply | 0 ~ 50KV |
| Light tube current | 0μA ~ 1000μA |
| Camera | HD camera |
| Detector | High-sensitivity imported Sipin detector |
| Resolution | 145 ± 5 eV |
| Multi-channel analyzer | Digital multi-channel |
| Sample chamber dimensions | / |
| Test time | 10s~ 60s |
| Measurement elements | Detection of S -U 77 elements |
| Analysis software | Finder qualitative and quantitative analysis software |
| External dimensions | 220 * 90 * 300 (mm) |
| Weight | 1.8Kg |
| Ambient temperature | -20℃～+50℃ |
| Relative humidity | ＜90% |
| Power requirements | AC 220, no high-power electromagnetic and vibration interference sources nearby |
1-Compact design, space-saving
2- One-key intelligent testing
3- Stylish and minimalist
4- Direct sales from original manufacturer
5- Sipin detector for more accurat
